IXXAT - CAN-CR110/FO

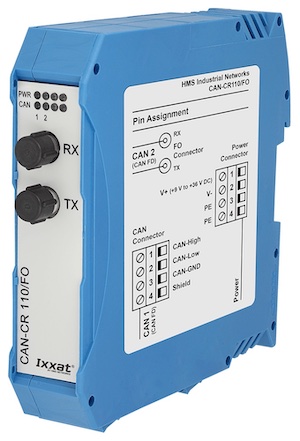

CAN / CAN FD repeater se šroubovací svorkovnicí a optickým konektorem CAN-CR110/FO lze použít pro galvanickou izolaci dvou segmentů sítě CAN / CAN FD. Repeater dokáže detekovat nefunkční segment sitě a v případě potíží ho oddělí od zbytku sítě tak aby umožnil komunikaci v nepostižených částech sítě. Jakmile dojde k obnovení komunikace v problematickém segmentu, je tento segment automaticky znovu propojen se zbytkem sítě. Galvanická izolace je jak na straně kominikace tak napájení.

Technická specifikace

• Display Transmit and defective segment (two duo LEDs, one for each segment), Power (one LED)
• CAN bus interface ISO 11898-2 with CAN choke. Two screw terminals. CAN variant available with and without integrated CAN termination.
• CAN bitrates Up to 1 Mbit/s
• CAN FD bus interface ISO CAN FD and nonISO CAN FD
• CAN FD bitrates Arbitration rate up to 1000 kBit/s, data rate up to 8000 kbit/s. The data rates are verified by tests. User-defined bit rates are possible. Attention: The maximum data rate can be exceeded depending on the concrete operating conditions (cable length, settings made, remote stations,...), but it can also not be reached.
• Delay typ. 300 ns (corresponds to ~60 m bus length) between the wire connection of a FO Repeater through the fiber optic cable to the wire connection of a second FO Repeater (not including the signal delay time of the fiber optics, which is ~5 ns/m)
• FO transmitter Broadcom HFBR 1404Z, 820 nm
• FO receiver Broadcom HFBR 2402Z, 820 nm
• FO line F-SMA connector; Multi-mode fiber optic line (only glass); recommended: 50/125 µm, 62,5/125 µm, also compatible with: 100/140 µm, 200 µm (pay attention to max. line length)
• Max. line length between two FO repeaters 50/125 µm: 1500 m, 62,5/125 µm: 2000 m
• Power supply 9-36 V DC, typ. 70 mA, max. 100 mA, through terminals
• Galvanic isolation 1 kV DC / 1 sec, 500 V AC / 1 min; CAN 1, CAN 2 and power supply are galvanically isolated from each other.
• Certification CE, FCC
• Temperature range -20 oC ... +70 oC
• Housing, size Plastic enclosure, 22.5 x 105 x 120 mm
